METRIC AND INCH TUBING STEEL



Williams Fluidair stocks seamless steel tubing in metric and inch sizes.

- Typically used for high pressure hydraulic systems and lubrication systems
- Seamless tubes are suitable for bending and flaring and can be connected with any standard tube fitting system or welding
- All tubes are stocked with clear zinc plating for corrosion protection
- All tubes are manufactured in Europe to the highest quality standards

Metric Tubing - seamless steel tubes to EN10305-4 (DIN2391/C NBK) specifications

- Stocked tubes are in material grade E235 (St37.4) with other grades available - Tube sizes from 4mm OD to 50mm OD are stocked in a variety of wall thicknesses

Inch Tubing - seamless steel tubes to SAE J524 specifications

-Tube sizes from 1/4” to 1-1/2” are stocked in a variety of wall thicknesses

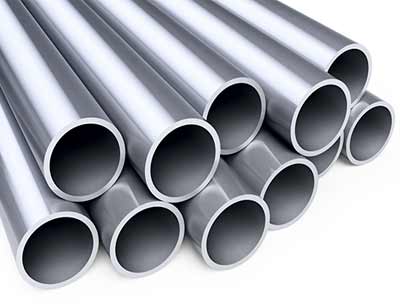

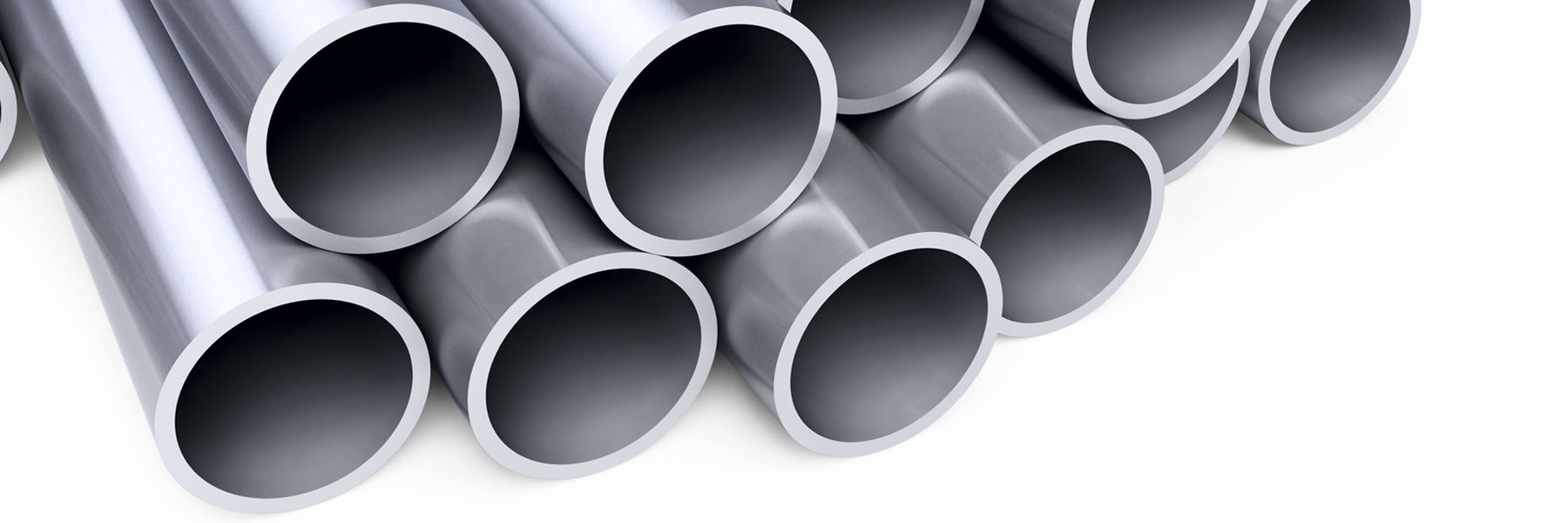

METRIC AND INCH TUBING STAINLESS STEEL



Williams Fluidair stocks stainless steel tubing in metric and inch sizes.

These tubes are typically used for hydraulic, pneumatic and instrumentation applications:

• Typical industries include marine, petrochemical, pharmaceutical, food, paper and others where corrosion resistance and cleanliness are very important • Stainless tubes are suitable for bending and can be connected with fittingsor welding

Metric Tubing - seamless precision stainless steel tubes are manufactured to EN10216-5.

- Stocked tubes are in material grade 1.4571 (316Ti) with other grades available
- Tube sizes from 4mm OD to 38mm OD are stocked in a variety of wall thicknesses

Inch Tubing - is available in seamless or welded construction in 304SS or 316SS

- Seamless tubes are manufactured to ASTM A-213 / ASTM A-269
- Welded tubes are manufactured to ASTM A-249 / ASTM A-269

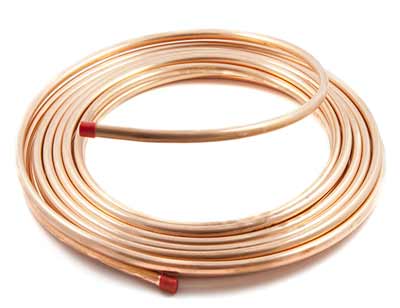

METRIC AND INCH COPPER TUBE



Copper tube is typically used for low pressure hydraulic, pneumatic, lubrication, water, coolant and other applications where easy installation and bendability are required.
- Metric coiled copper tubes are manufactured as per EN1057 (previously DIN 1786)
- Coiled tubes stocked in 4, 6, 8 10 and 12mm OD’s in lengths up to 50m
- Straight copper tubes are available in lengths of 5m
- Connections may be made with compression fittings, flare fittings or by soldering

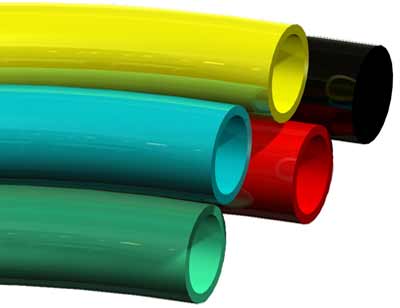

PLASTIC TUBING



Plastic tube is typically used for pneumatics, air brakes and lubrication applications.

We carry from stock:

Metric sizes in nylon, polyethylene and polyurethane from 4mm – 12mm
- Inch sizes in nylon, polyethylene and polyurethane from 1/8” – 1/2”
- High pressure nylon tube for grease lubrication as per DIN 73378
- Nylon tubing for air brakes as per DIN 74234
